Visualize fields on a latitude-longitude grid.

Install dependencies

First let's make sure we have all required packages installed.

using Pkg
pkg"add Oceananigans, GLMakie, Imaginocean, GeoMakie"

Construct a test-bed field

Let's plot a field that lives on a cubed sphere grid.

using Oceananigans

First create a conformal cubed sphere grid.

Nx = 30
Ny = 30
Nz = 1

radius = 1

grid = ConformalCubedSphereGrid(; panel_size = (Nx, Ny, Nz),
                                  z = (-1, 0),
                                  radius)

ConformalCubedSphereGrid{Float64, Oceananigans.Grids.FullyConnected, Oceananigans.Grids.FullyConnected, Oceananigans.Grids.Bounded} partitioned on Oceananigans.Architectures.CPU():
├── grids: 30×30×1 OrthogonalSphericalShellGrid{Float64, Oceananigans.Grids.FullyConnected, Oceananigans.Grids.FullyConnected, Oceananigans.Grids.Bounded} on Oceananigans.Architectures.CPU with 3×3×3 halo and with precomputed metrics
├── partitioning: CubedSpherePartition with (1 region in each panel)
├── connectivity: CubedSphereConnectivity
└── devices: (Oceananigans.Architectures.CPU(), Oceananigans.Architectures.CPU(), Oceananigans.Architectures.CPU(), Oceananigans.Architectures.CPU(), Oceananigans.Architectures.CPU(), Oceananigans.Architectures.CPU())

Let's create a field. We choose a field that lives on the center of the cells.

We set the field values to something and see how that looks.

field = CenterField(grid)

set!(field, (λ, φ, z) -> (sind(3λ) + 1/3 * sind(5λ)) * cosd(3φ)^2)

2D visualization

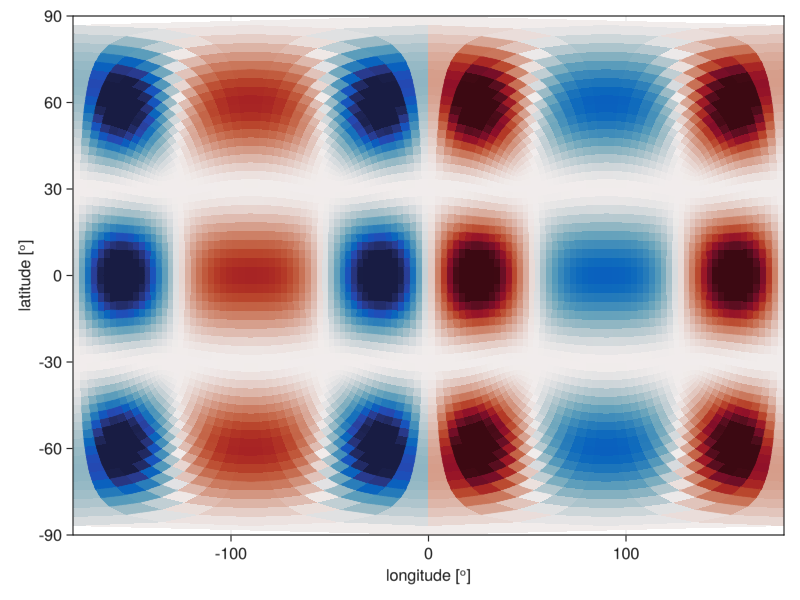

We can visualize this field in 2D using a heatmap. Imaginocean.jl has a method called heatlatlon! that plots a field that lives on a grid whose native coordinates are latitude and longitude.

using GLMakie, Imaginocean

kwargs = (colorrange = (-1, 1), colormap = :balance)

fig = Figure()
ax = Axis(fig[1, 1],
          xlabel = "longitude [ᵒ]",
          ylabel = "latitude [ᵒ]",
          limits = ((-180, 180), (-90, 90)))

heatlatlon!(ax, field, 1; kwargs...)

current_figure()

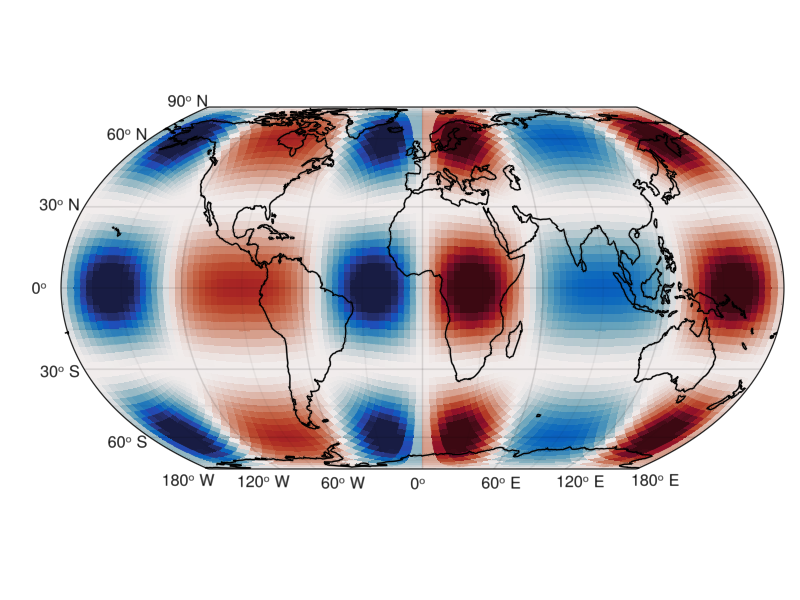

We can do the same but with a GeoAxis provided by the GeoMakie.jl package that allows us to easily add coastlines or also use various projections.

using GeoMakie

fig = Figure()
ax = GeoAxis(fig[1, 1],
             coastlines = true,
             lonlims = automatic)

heatlatlon!(ax, field, 1; kwargs...)

current_figure()

3D visualization on the sphere

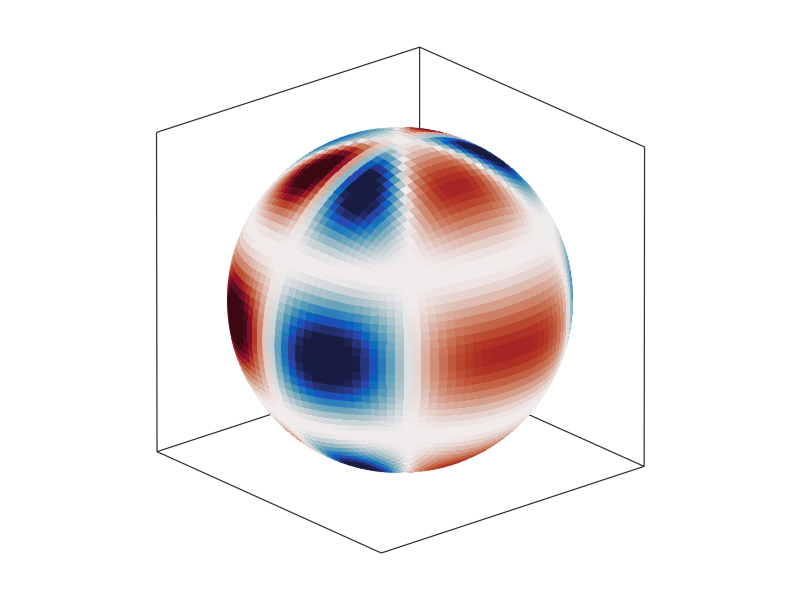

To make a 3D visualization on the sphere we first create a 3D axis and then use heatsphere! method from Imaginocean.jl.

fig = Figure()
ax = Axis3(fig[1, 1],
           aspect = (1, 1, 1),
           limits = ((-1, 1), (-1, 1), (-1, 1)))

heatsphere!(ax, field; kwargs...)
hidedecorations!(ax) # hides the axes labels

current_figure()
